Product Features
01
Powerful and Stable Performance

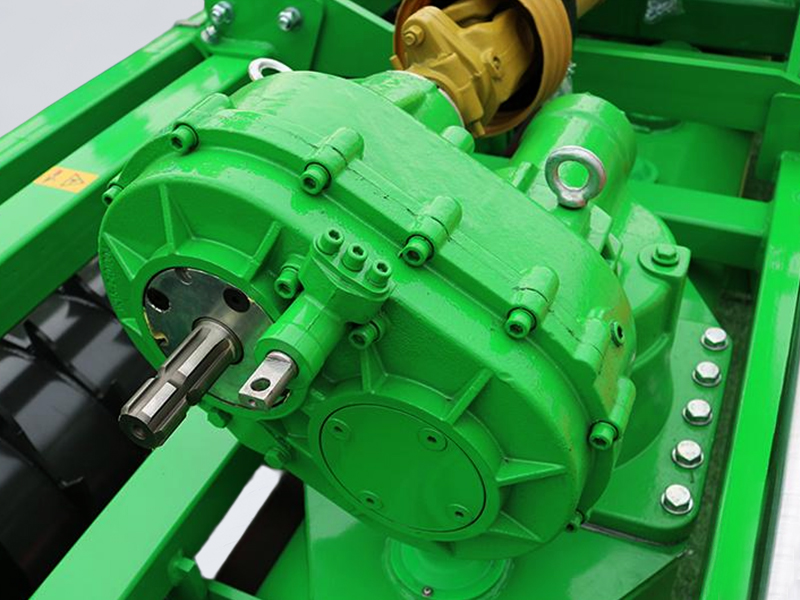

The gearbox adopts an integrated welded structure, offering strong torsional resistance, low noise, and smooth operation.
The two-speed adjustable transmission provides excellent compatibility with various tractors and adapts well to different soil conditions.
02
High Durability
The driving shaft is made from high-strength alloy steel and assembled with high-standard spherical double-row deep groove ball bearings, providing high load capacity.

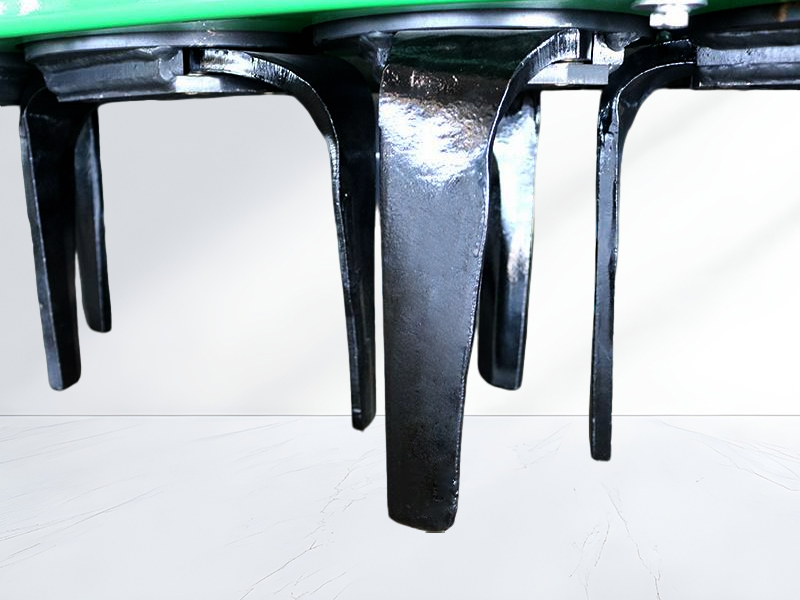

The harrow teeth are made of high-strength, wear-resistant alloy, ensuring excellent abrasion resistance and a long service life.
03
Excellent Adaptability and Efficiency
The heavy-duty frame suits a variety of working conditions, with working widths ranging from 2 to 6 meters, meeting a wide range of power requirements.

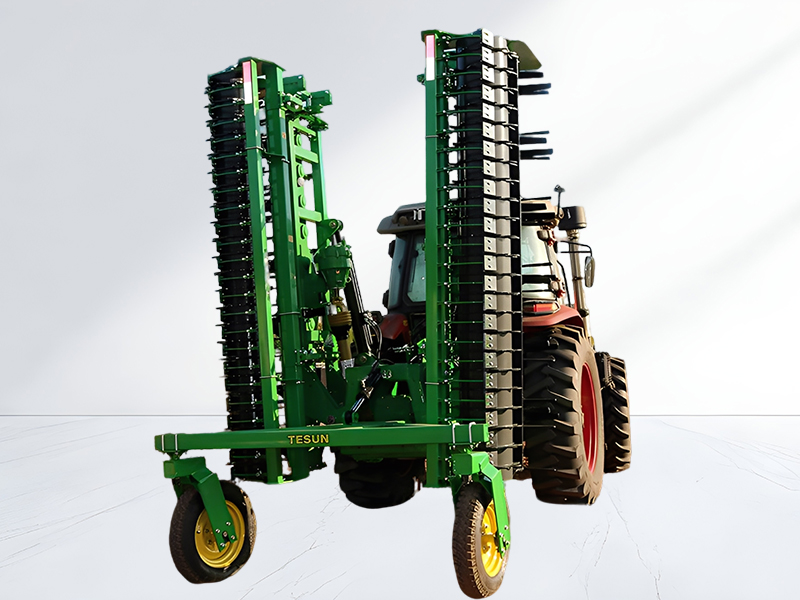

The 6-meter model features a hydraulic dual-cylinder folding mechanism, enabling wide-span operation and narrow-width transport.
Multiple seeders can be optionally equipped for combined operations (excluding the folding type), enabling harrowing and seeding in a single pass to reduce operational costs.
The independently adjustable soil scraper with wear-resistant coating offers excellent scraping performance and extended service life.
product description
| Item | Working Width | Required Power | Weight | Number of Tines | Overall Dimensions (L×W×H) |
| Unit | mm | hp | kg | pcs | mm |
| Model 2.0 | 2000 | 60–120 | 1400 | 16 | 1600×2200×1300 |
| Model 2.5 | 2500 | 90–140 | 1650 | 20 | 1600×2700×1300 |
| Model 3.0 | 3000 | 110–160 | 1900 | 24 | 1600×3200×1300 |
| Model 3.5 | 3500 | 140–210 | 2150 | 28 | 1600×3700×1300 |
| Model 4.0 | 4000 | 160–260 | 2350 | 32 | 1600×4200×1300 |
| Model 5.0 | 5000 | 220–300 | 3750 | 40 | 3150×5200×1300 |
| Model 6.0 | 6000 | 260–350 | 4200 | 48 | 3150×6200×1300 |
