LINKSY® Intelligent Agricultural Robot (3RTH-65-A)

Product Description

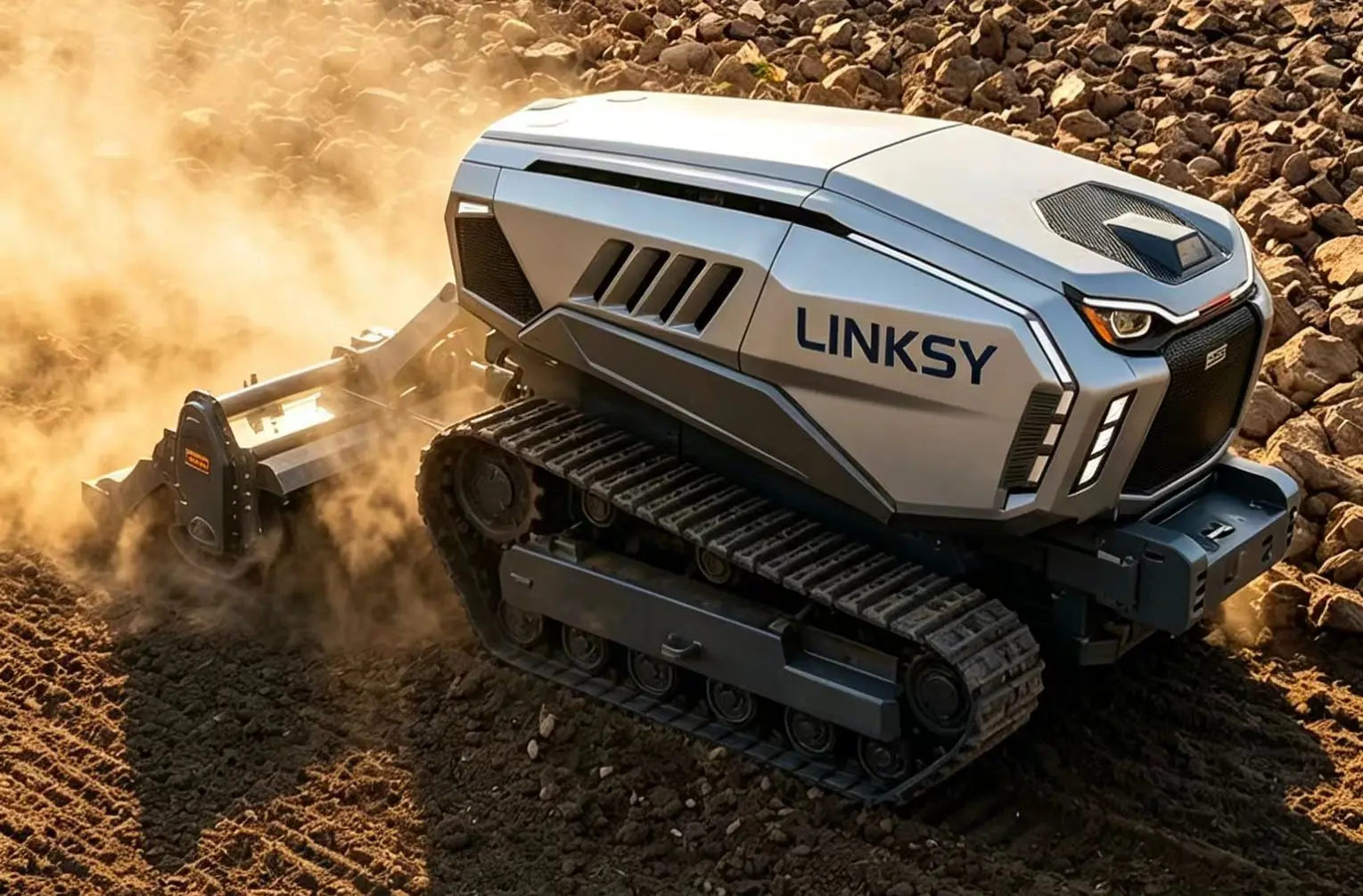

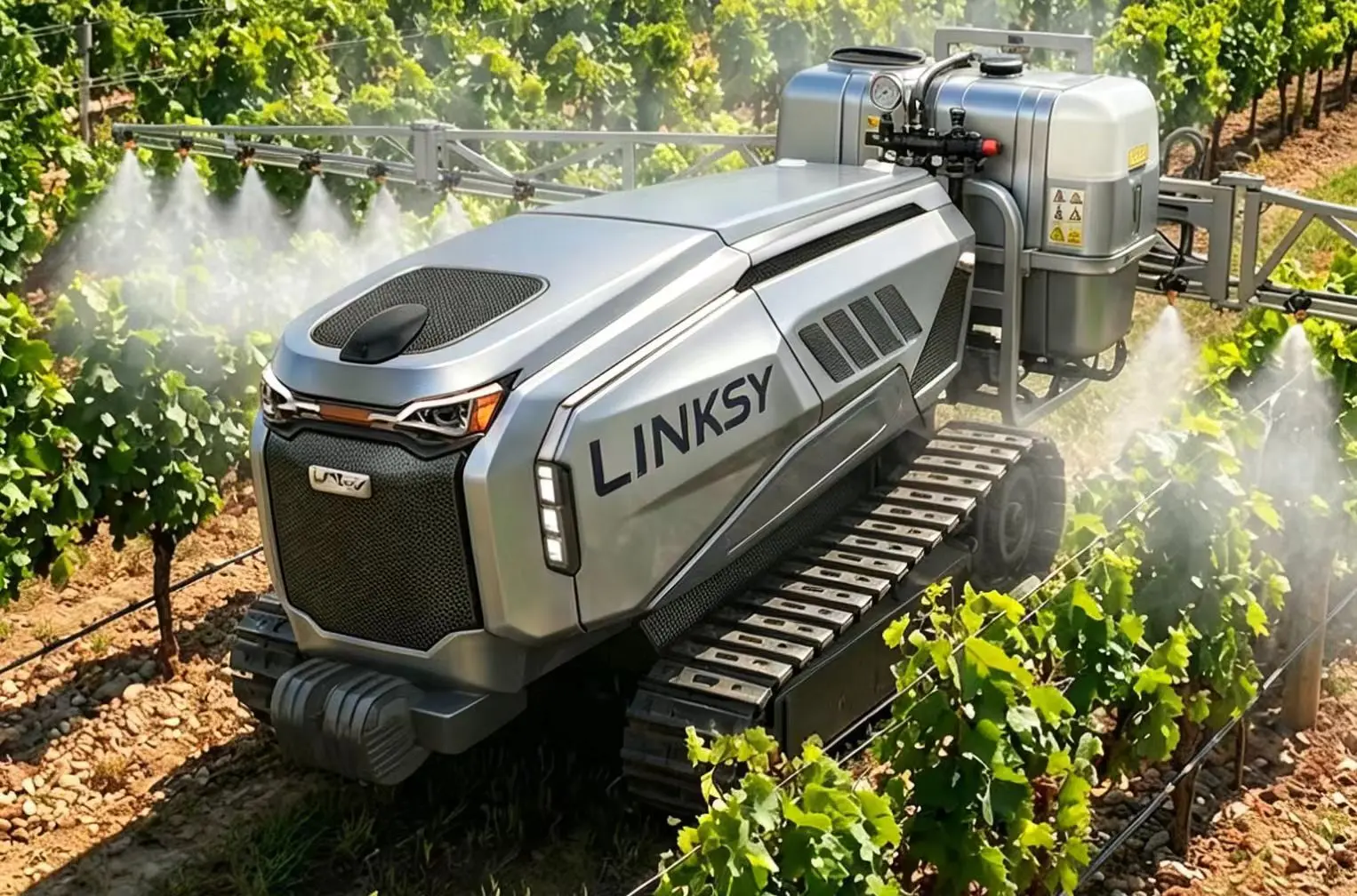

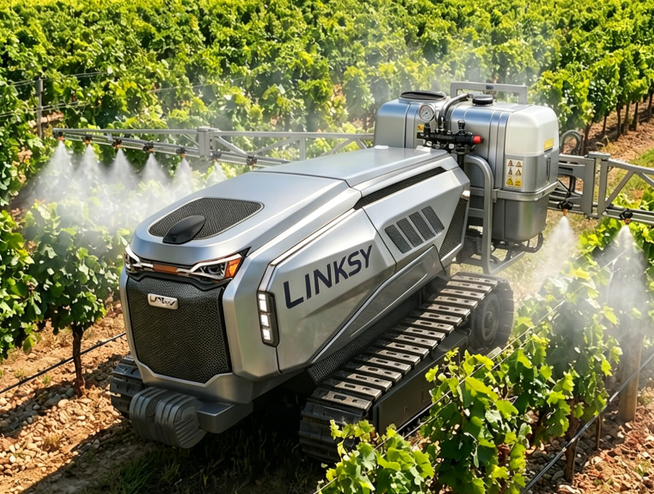

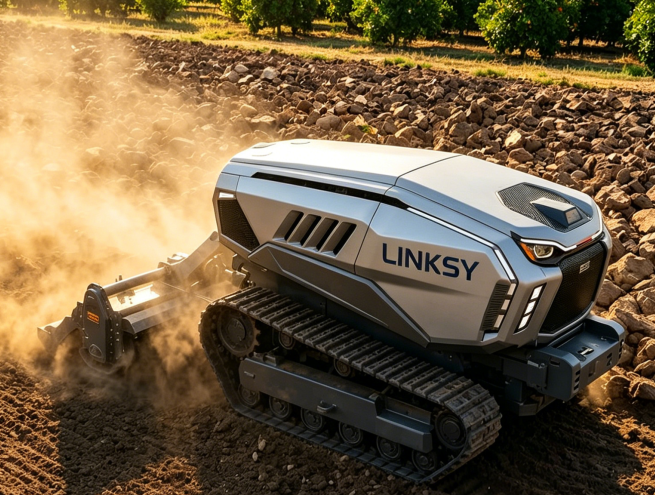

This equipment is designed for modern orchards and hilly mountain scenarios; It is a compact intelligent operation platform. The product features a hybrid petrol-electric system and a tracked chassis, improving energy efficiency while ensuring stable power output. The whole unit supports standard Category I implement attachments and can cover various operational tasks like land preparation, trenching, plant protection, mowing, and fertilization. Based on high-precision positioning and autonomous path capabilities, it provides a more flexible and efficient intelligent equipment solution for orchard management.

The product features a tracked chassis and a low ground pressure design, which not only improves its ability to navigate complex terrain but also helps minimize disturbance to the orchard surface and crop root zones, making it ideal for precise, continuous orchard management operations.

    Performance characteristics

    Suitable for Different Terrainsasb

    Power System and Efficiency

    Easy Operation and Maintenance (2)kwa

    Design and Control

    Off-route-protection3vjh

    Intelligence and Precision Navigation

    Product Features

    01
    65 Hp hybrid power, stable and efficient output
    02
    Tracked chassis adapts to orchard and slope environments
    03
    Low ground pressure design reduces surface and root zone disturbance
    586d663c-55e5-495d-8b91-66921db61ea5
    62c48b22-0779-4f73-bb57-6a5c02c30d1e
    04
    Supports combined front and rear implement operations
    05
    Supports multiple implement attachments (standard Class I hitches) for versatile applications
    06
    Supports autonomous driving and multi-machine collaborative operation

    Product Parameter

    Item Unit Specification
    Engine Rated  Power hp(kW) 65 (48.5)
    Powertrain System / Diesel-Electric Hybrid Powertrain
    Machine Type / Tracked
    Frame Type / Full Frame
    Overall Dimensions (L × W × H) in.(mm) 167.3×57.1×65.0 (4250×1450×1650)
    Track Ground Contact Length in.(mm) 53.1 (1350)
    Track Gauge in.(mm) 45.3 (1150)
    Maximum Theoretical Design Speed mph/(km/h) 5.0 (8)
    Track Material / Rubber
    Track  Width in.(mm) 9.8 (250)
    Hitch Type / Optional: Rear Three-Point Hitch (Standard)
    Standard: Front Three-Point Hitch (Optional)
    Hitch Category / Standard: Category I     Optional: Category II N
    Hydraulic Outlets & Flow Rate / Rear: 2 SCVs, ≥40 L/min
    Front: 2 SCVs, ≥40 L/min
    Hydraulic System Relief Pressure MPa 18±0.5
    PTO Spline Splines / 6
    Standard PTO Speed rpm Front : 1000 (Standard) / 540 (Optional)
    Rear:540 / 1000
    PTO Power hp(kW) Front: ≥ 21.5(≥16)    Rear: ≥ 33.5(≥25)                               Simultaneous: ≥ 33.5(≥25)
    Navigation System / Integrated RTK Guidance System

    Application Scenarios

    357a3ac6-a921-48b8-ad95-14ee962096bb
    01



    0fe086f6-cfce-4cdb-b59b-8ef50c2dc79c
    01



    d931b667-875a-49cb-b966-716cd8c530e4
    01
