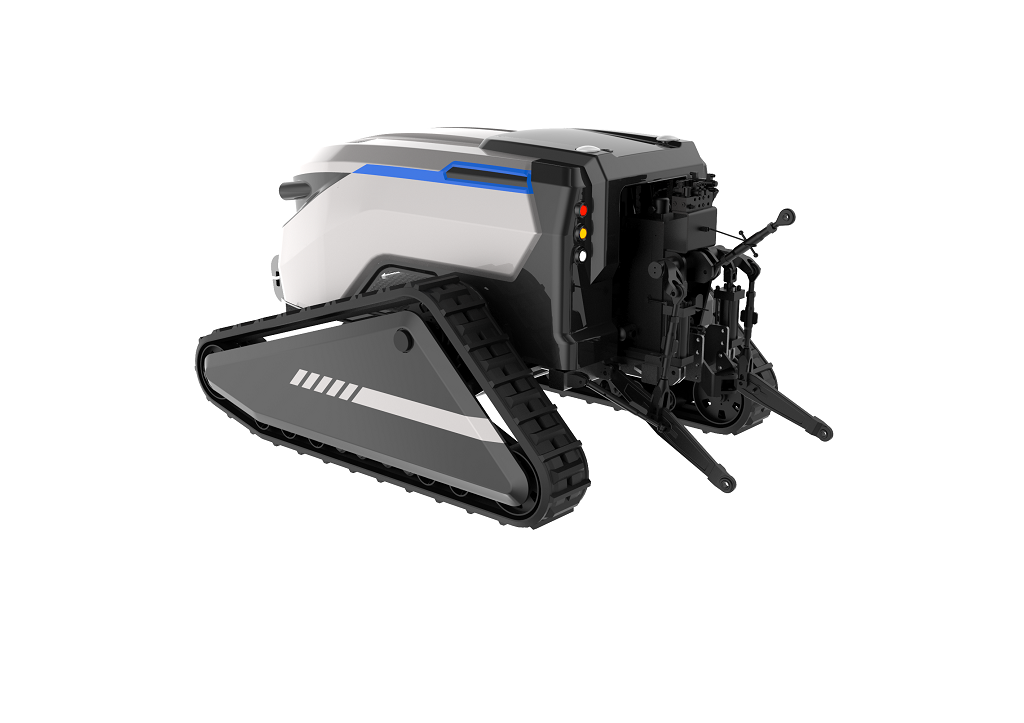

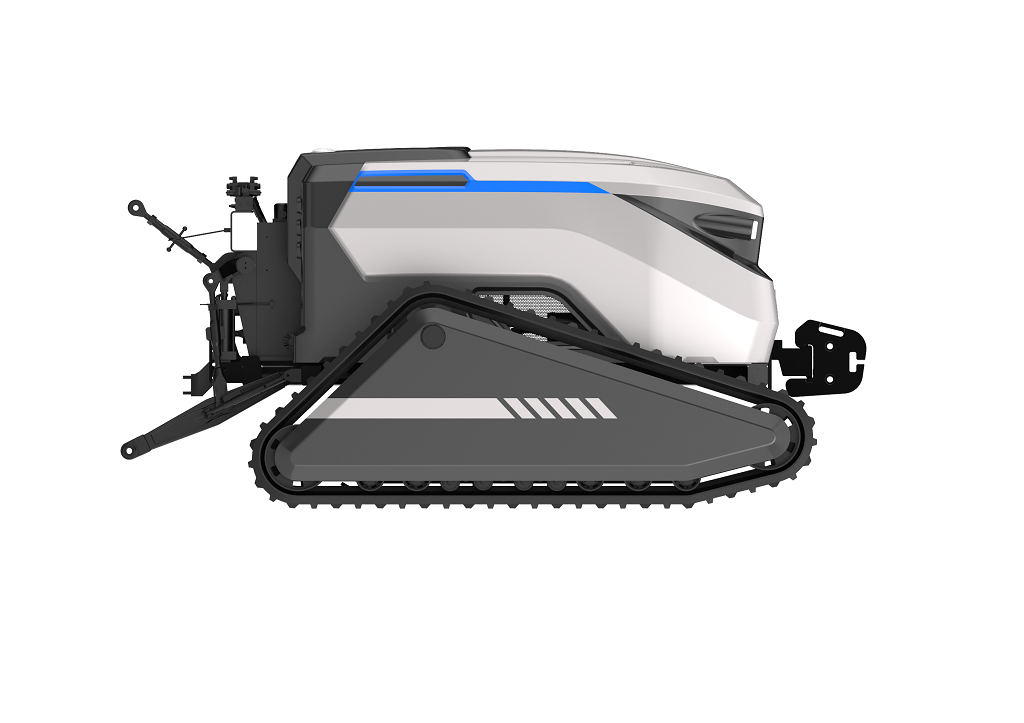

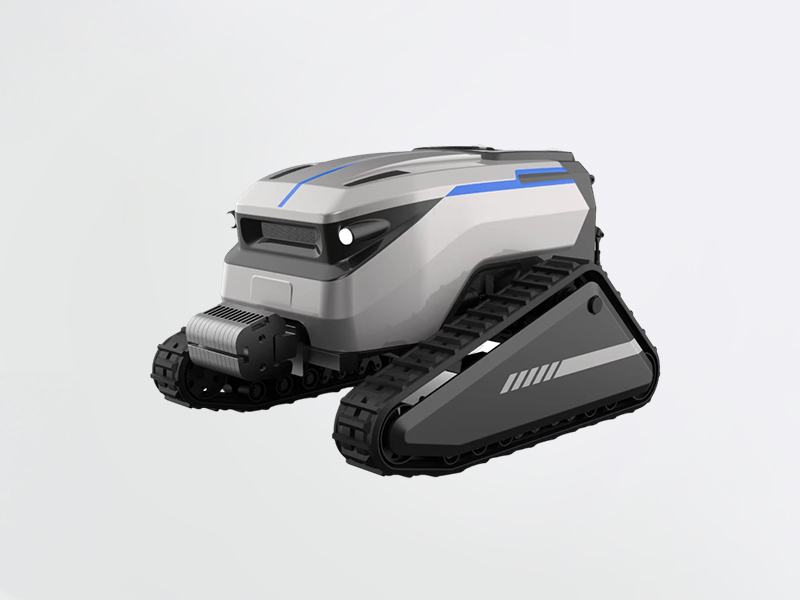

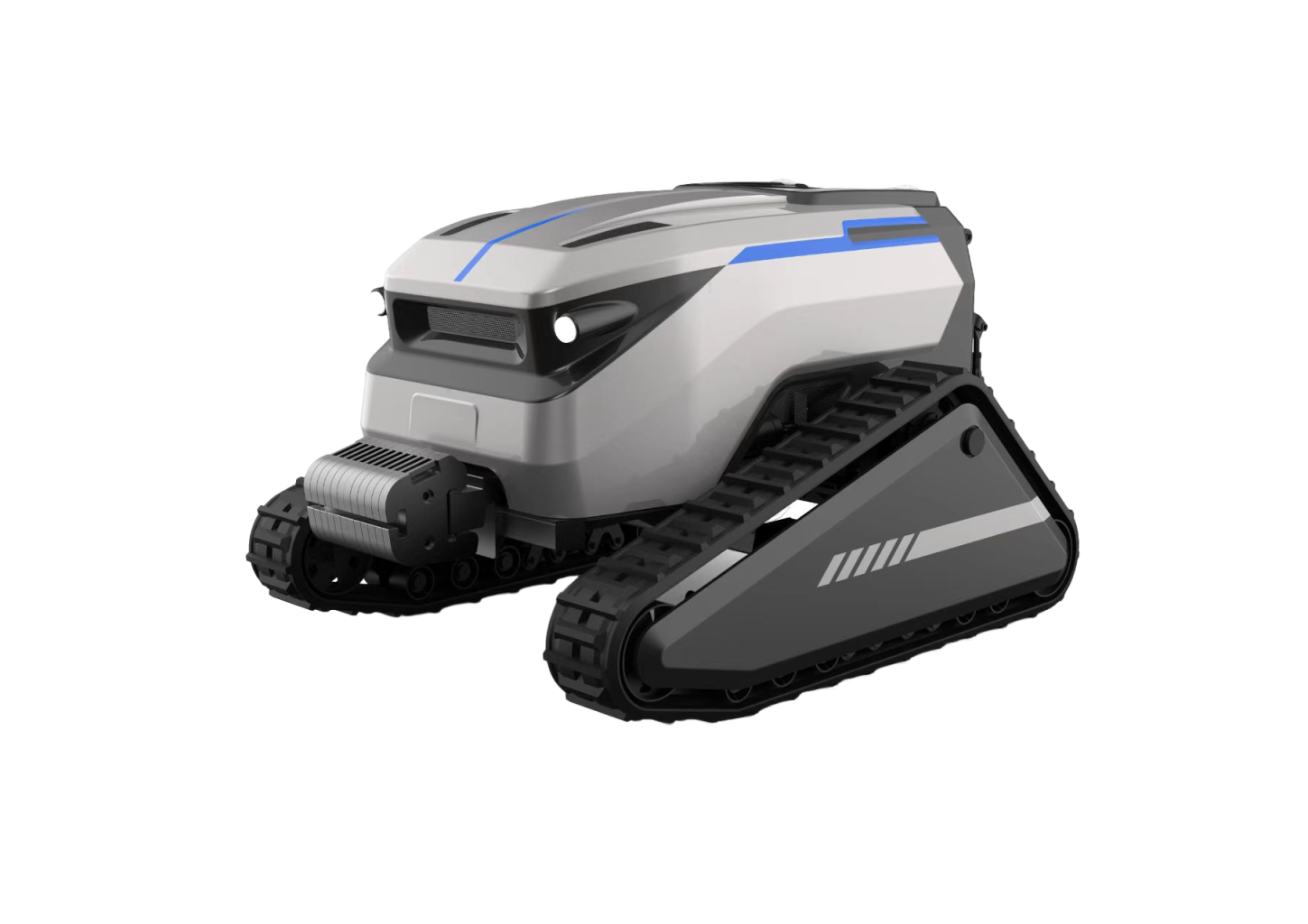

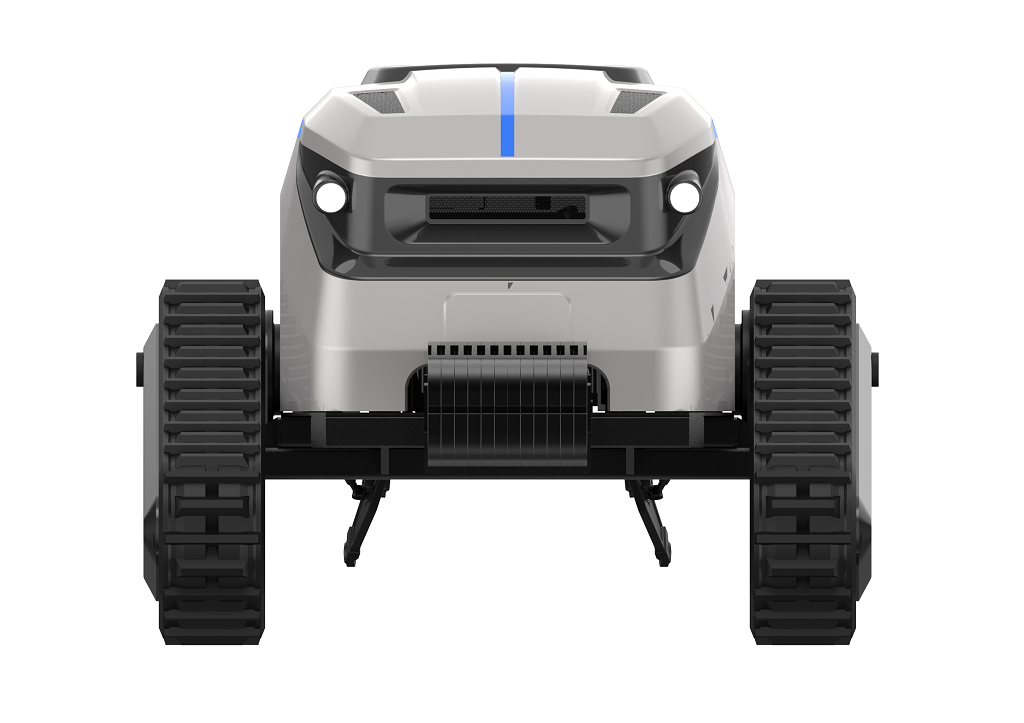

LINKSY® Intelligent Agricultural Robot (2RTH-120-B)

Product Description

A highly integrated automatic navigation system for intelligent equipment upgrades.

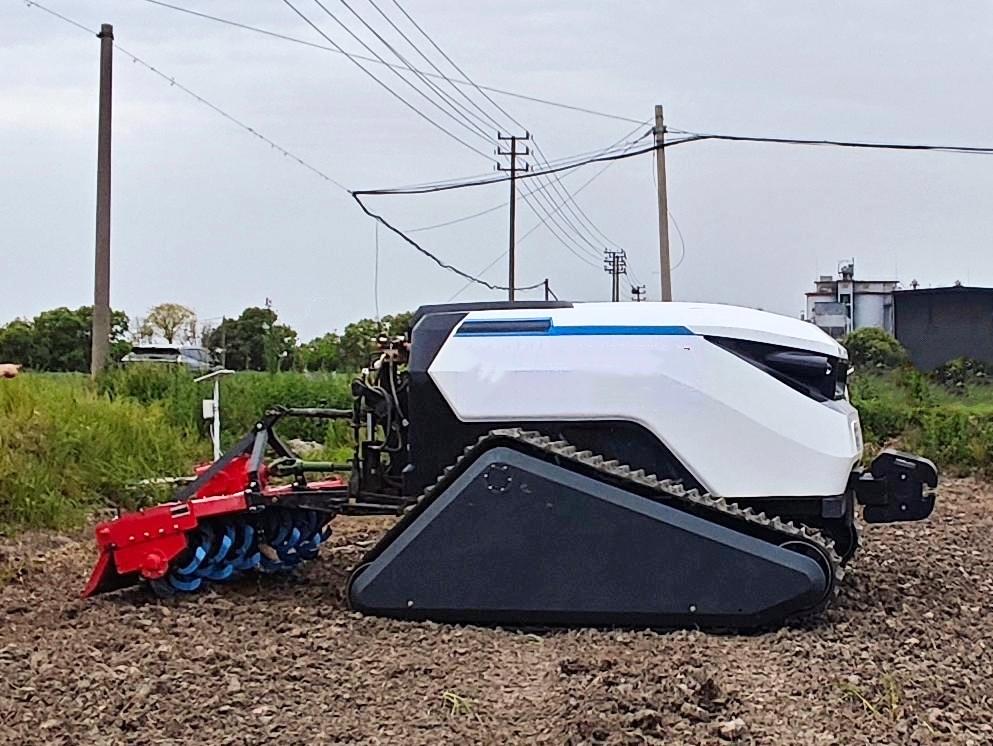

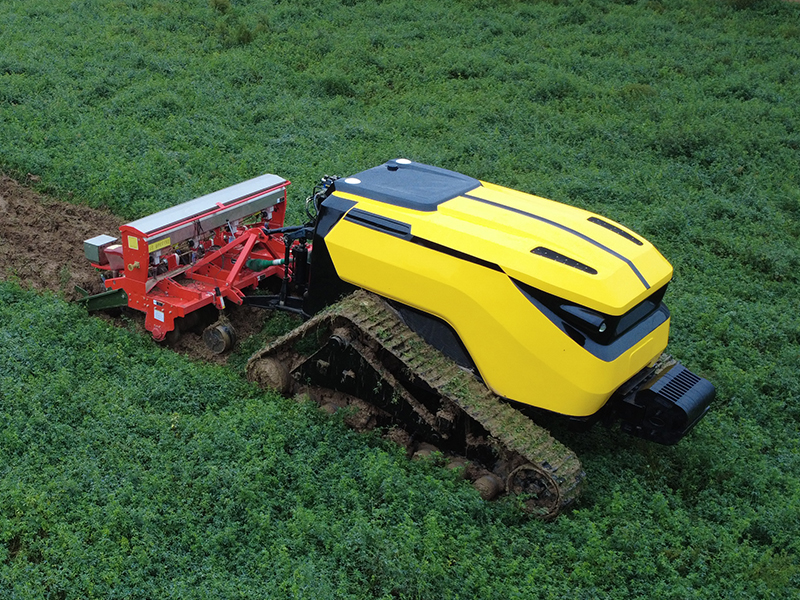

This equipment is designed for field crop production scenarios like corn and wheat. It integrates a hybrid, autonomous driving, dual-track walking, and multi-machine collaboration capabilities, balancing power output, operational accuracy, and operational efficiency. The whole unit supports standard three-point implement hitches and can be used for various field operations such as tillage, seeding, and fertilization. It enhances operational efficiency through path planning and real-time data feedback.

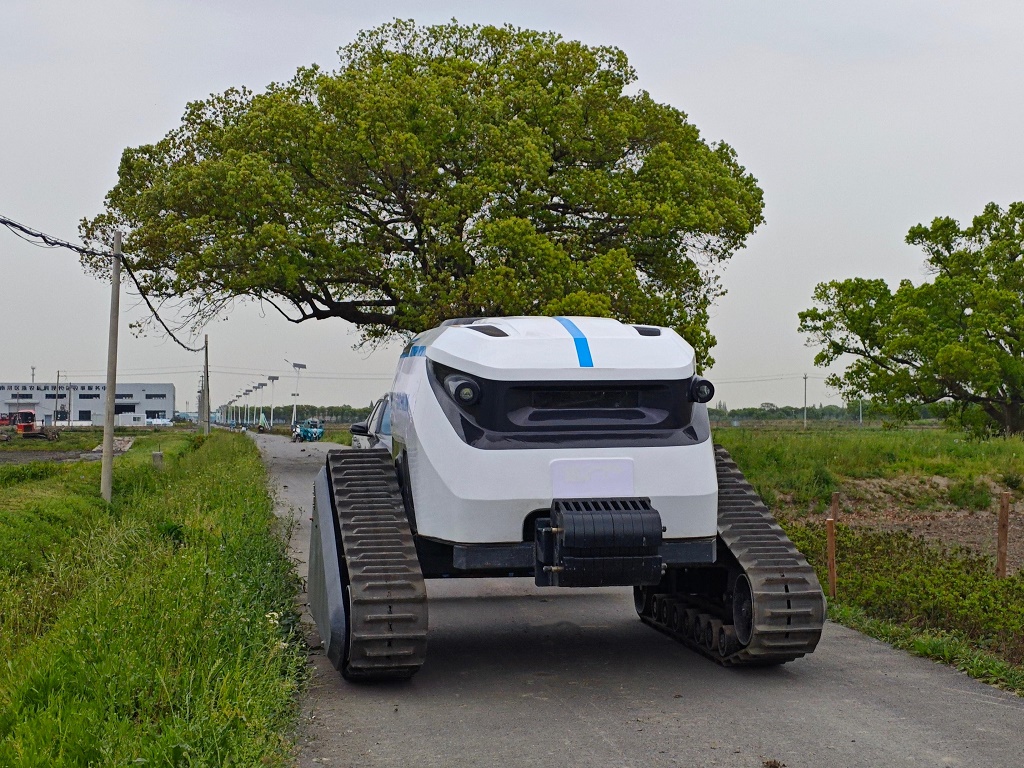

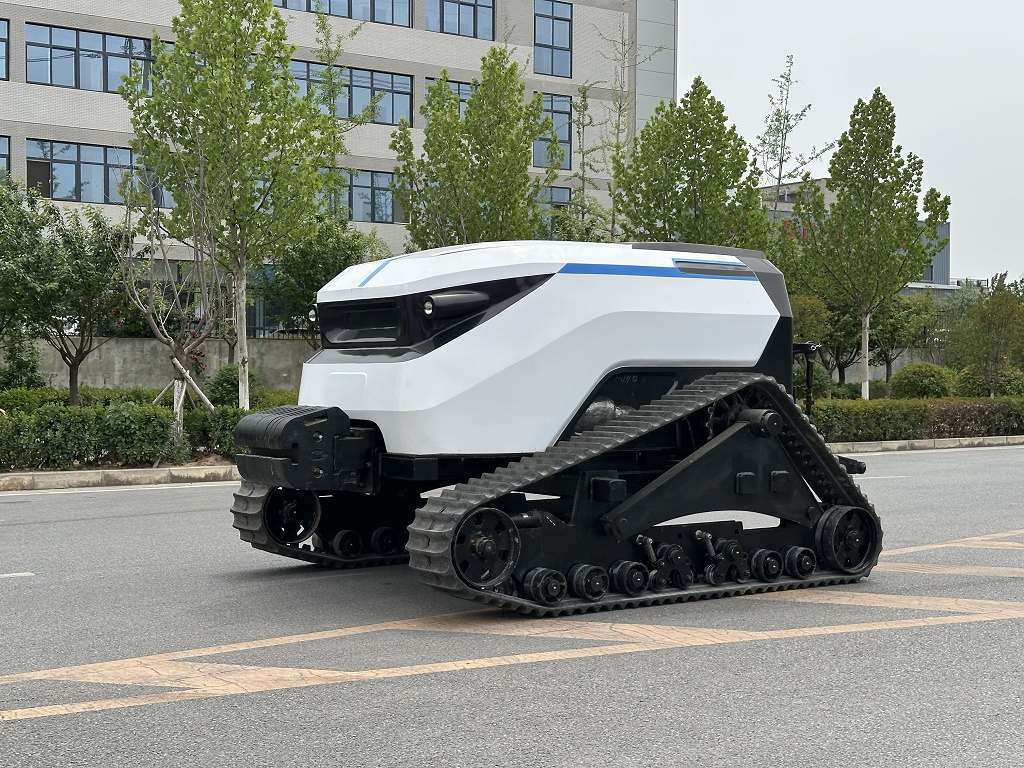

The dual-track structure not only enhances the equipment's traction and off-road capability on soft ground and under complex working conditions but also reduces soil compaction through lower ground pressure. This has a positive significance in protecting topsoil structure and crop root growth environments. It is a core piece of equipment promoting the integrated development of field agriculture mechanization and digitalization.

    Performance characteristics

    Suitable for Different Terrainsasb

    Power System and Efficiency

    Easy Operation and Maintenance (2)kwa

    Design and Control

    Off-route-protection3vjh

    Intelligence and Precision Navigation

    Product Features

    01
    Intelligent operation platform for field crops
    02
    Hybrid drive for sustainable operation
    微信图片_20251104173047_893_17 - 副本
    微信图片_20251104173047_893_17
    03
    Supports autonomous driving and multi-machine collaborative operation
    04

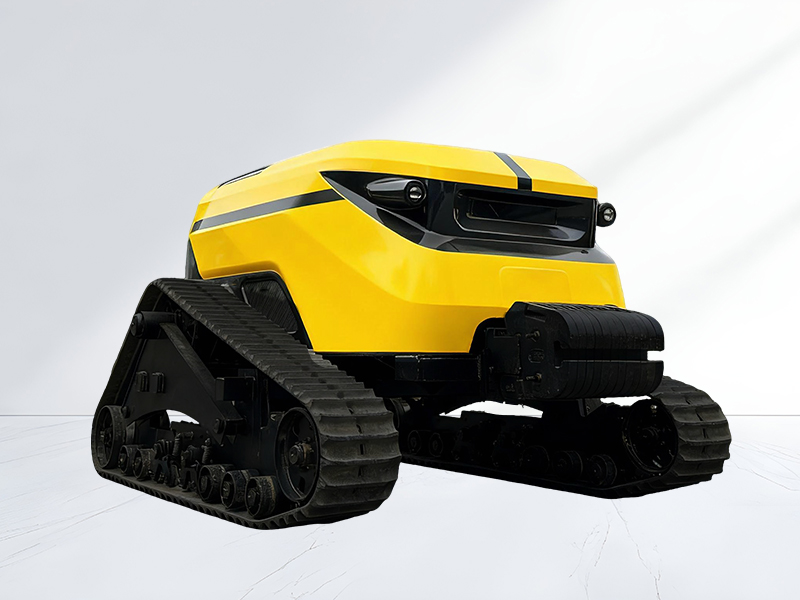

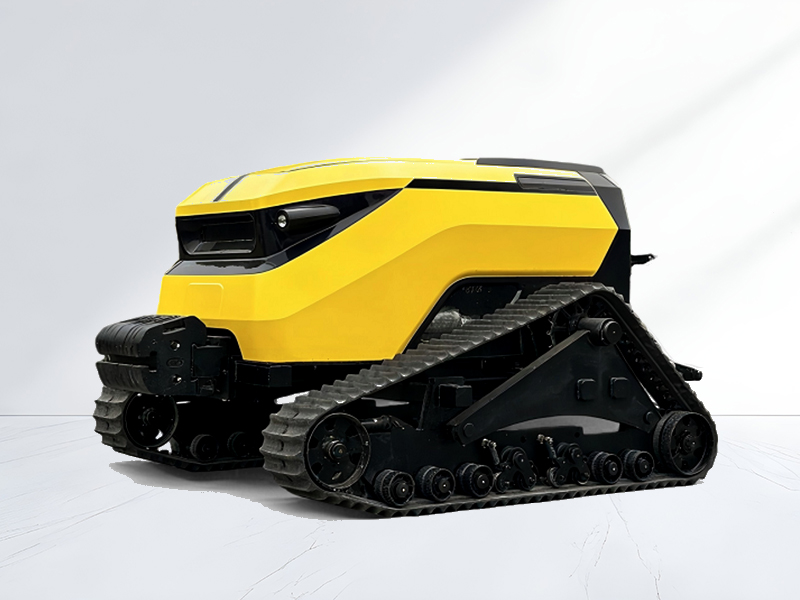

    Dual-track structure enhances traction and off-road capability to reduce soil compaction

    Product Parameter

    Project name unit Details
    The whole machine Model specifications / 3W-120L
    External dimensions mm 1430x950x840(Error ±5%)
    Working pressure MPa 2
    Drive type / Track drive
    Steering type / Differential steering
    Horizontal range or spray range m 16
    Minimum ground clearance mm 110
    Climbing angle ° 30
    Track width mm 150
    Track pitch mm 72
    Number of track sections / 37
    Liquid pump Structural type / Plunger pump
    Rated working pressure MPa 0~5
    Pressure limiting type / Spring-loaded
    Medicine box Material / PE
    Volume of medicine box L 120
    Fan assembly Impeller material / Nylon blades, metal hub
    Impeller diameter mm 500
    Spray boom material / Stainless steel
    Power matching Name / Electric motor
    Structural type / Direct current (DC)
    Rated power kW×(Number) 1x4
    Rated speed r/min 3000
    Operating voltage V 48
    Battery Type / Lithium battery
    Nominal voltage V 48
    Built-in quantity piece 2

    Application Scenarios

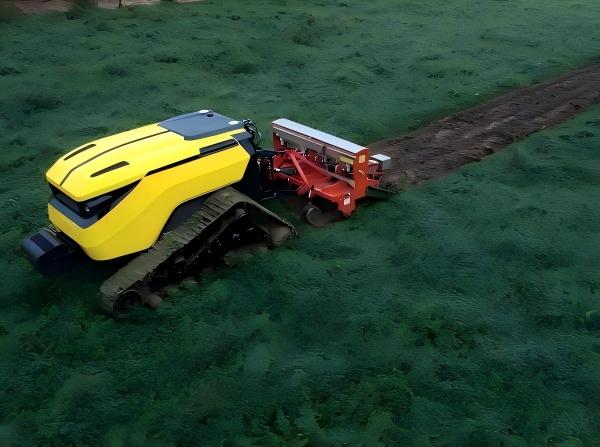

    微信图片_20251104173047_893_17 - 副本
    01

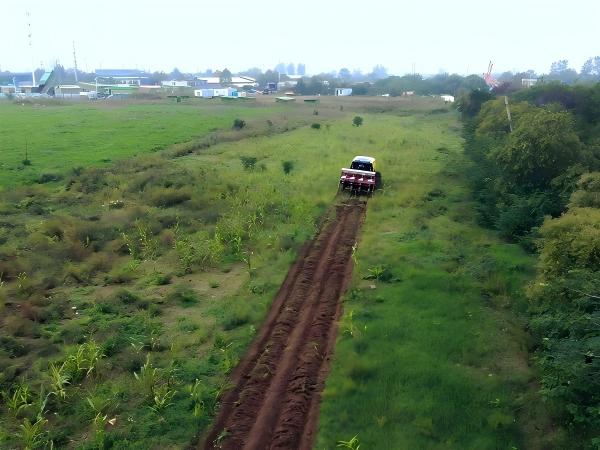

    微信图片_20251107144501_923_17
    01

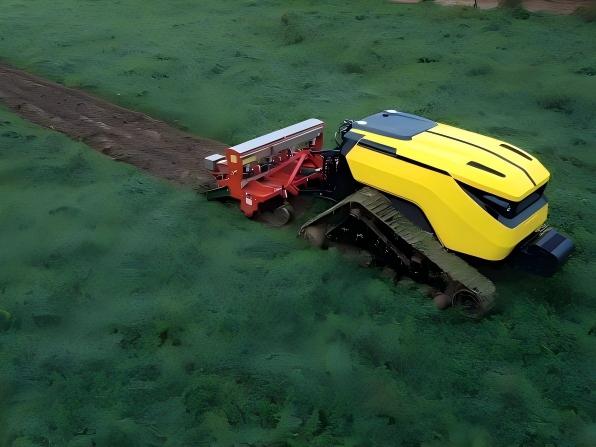

    微信图片_20251104173047_893_17
    01
